            Standing Rigging

            Turnbuckles


            Column

            Adjustable Shroud Hook

            The 451 is correctly used at all locations where an adjustment may remain unchanged for a prolonged period of time. The adjustment stems from different hole spacing of the internal and external slides and is accomplished in around 1mm steps. The controllable adjustment range is 12mm! Both the "quick mounting" feature and the "adjustment controllability" features are Pekabe ideas. Also, the "combination facility" whereby all Pekabe rigging screws and shroud hooks can be inter-combined or used to extend each other!

            Adjustable Shroud Hook

            Specifications

            • Overall Length: Min. 2- 3/8" or 60mm ~ Max. 2 - 3/4" or 68mm
            • Weight: 7.1 grams



            Column

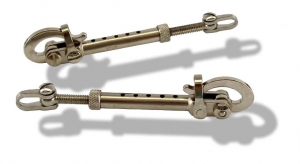

            Single Rigging Screw – Turnbuckle

            The single rigging screw with spindle positively secures against loss, with quick lock. The first non-losable rigging turnbuckle with a large take-up range of 18mm! The spindle thread is M2.6 with a pitch of .45mm. By use of the spindle locking nut, the thread length remains the same for quick rigging. The pelican hook base can be swapped out for a #404 double hook or the #401 or #402 shackles. The turnbuckle is well refined, extremely versatile, and attractive!

            Single Rigging Screw

            Specifications

            • Overall Length: 1 - 3/4" or 44mm fully closed - pin to pin
            • Overall Length: 2 - 1/2" or 64mm fully open - pin to pin
            • Weight: 5.8 grams

            Double Rigging Screw – Turnbuckle


            The double rigging screw is equipped with the well-known quick fastening system, which, however, can be replaced by the double flat hook forming part of the delivery. The 488 may be advantageously used as an after stay rigger or as a boom vang because the handwheel assures unusually fine adjustment, one revolution for .9mm.

            Specifications


            Column

            • Overall Length: 4- 3/4" fully open - pin to pin or 120mm

            Column

            • Overall Length: 3 - 3/4" fully closed - pin to pin or 95mm

            Column

            • Weight: 11.3 grams

            Wire & Swages

            Column

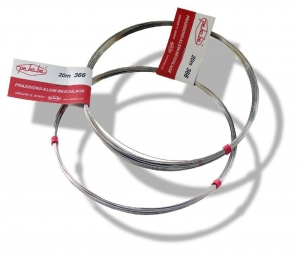

            Inox Rigging Wire .6mm

            Solid INOX straightened rigging wire sold by the coil in lengths of 20 meters.

            Inox Rigging Wire

            Specifications

            • Length: 20M

            • Dia: .6mm

            • Weight Per Meter: 2.2g

            Column

            Swedge Tubes

            These nickel-plated tubes can be used with any wire .6mm or under. Works perfectly with the Pekabe #366 wire.

            Swedge Tubes

            Specifications

            • Length: .198” or 5.03mm
            • Outside Dia.: .076” or 1.93mm
            • Inside Dia.: .042” or 1.67mm
            • Weight: .078 grams
            Column

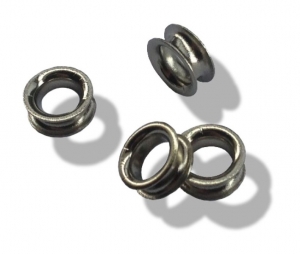

            Thimbles - Pack of 20

            Nickel-plated thimbles (or grommets) are excellent for use as a shroud wire end connection. The thimbles can also be used as a sail corner eyelet.

            Thimble

            Specifications

            • Outer Dia: 6.3mm

            • Inside Dia: 3.8mm
            • Thickness: 2.5mm
            • Weight: .093 grams
            Column

            Shackle 5mm - With Bolt

            Shackles are rigging elements used for both standing and running gear. Wherever a shackle is located, the rigging may be opened, closed, modified, and prearranged parts exchanged.

            Shackle 5mm

            Specifications

            • Height: 3/8" or 9mm

            • Width Overall: 5/16" or 8mm
            • Opening Width: 3/16" or 5mm
            • Smallest Mounting Hole Usable: 1/8" or 4mm
            Column

            Shackle 3mm - With Bolt

            Shackles are rigging elements used for both standing and running gear. Wherever a shackle is located, the rigging may be opened, closed, modified, and prearranged parts exchanged.

            Shackle 3mm

            Specifications

            • Height: 5/16" or 8mm

            • Width: 7/32" overall or 6mm
            • Opening Width: 1/8" or 3mm
            • Smallest Mounting Hole Usable: 1/8" or 4mm
            Column

            Swivel Shackle

            The frame width refers to the 401 and 402 shackles. The opposing frames are joined together and can be rotated so that a block that has been mounted can move freely, corresponding to the cable pull. The side holes allow a thin cord to be passed through (then knotted) to limit the potential rotation of the swivel shackle. The 403 is suitable for all Pekabe blocks.

            Swivel Shackle

            Specifications

            • Height: 11/16" or 17mm
            • Jaw Openings: 5mm & 3mm - matching the 401 and 402 shackles
            • Weight: 2.2 grams
              Column

              Double Flat Hook With Shackle

              A hook element is unsurpassed in terms of carrying capacity and elegant design! Sure and sturdy double-hook for the fastening of fore-stay. On the closed double hook, the concealed hook points prevent the catching of sheets or hooking on to other boats.

              Double Flat Hook

              Specifications

              • Height: 13/16" or 5mm

              • Width: 3/8" or 9.5mm
              • Closed Hook Center Open Space: 5/32" or 4mm
              • Eye To Eye: 1/2" or 12.7mm
              • Weight: 1.85 grams
              Column

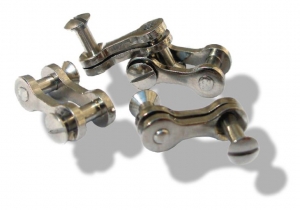

              Double Shackle - 5mm

              Blocks that need to be removed regularly would be more quickly and easily mounted with a double shackle. Block can also be joined together as shown in the diagrams.

              Double Shackle 5mm

              Specifications

              • Overall Length: 7/16" or 11mm

              • Width: 3/16" or 5mm
              • Weight: 1 gram
              Column

              Double Shackle - 3mm

              Blocks that need to be removed regularly would be more quickly and easily mounted with a double shackle. Block can also be joined together as shown in the diagrams.

              Double Shackle 3mm

              Specifications

              • Overall Length: 7/16"

              • Width: 3/16"
              • Weight: 1 gram
              Column

              Double Shackle - 5/3mm

              Blocks that need to be removed regularly would be more quickly and easily mounted with a double shackle. Block can also be joined together as shown in the diagrams.

              Double Shackle 5/3

              Specifications

              • Overall Length: 7/16"

              • Width: 3/16"
              • Weight: 1 gram

              Deck Fittings

              Column

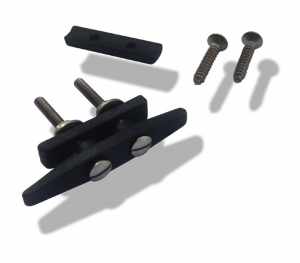

              Cleat

              Well-appointed construction comprising a total of 11 parts. The cleat can be fitted to masts and round booms using the relevant spacers. The flat spacer can be used on sensitive decks, securing either with threaded bolts and nuts or through stainless steel self-tapping screws. The 350 cleat possesses a jam wedge and is better at securing rigging than any other cleat. It does not have any sharp edges and is very light in weight.

              Cleat

              Specifications

              • Length: 1- 3/16" Tip to Tip or 30mm

              • Width: 3/16" or 5mm
              • Height off Deck: 3/16" or 5mm
              • Weight: 1.3 - 2.1 grams depending on the configuration
              Column

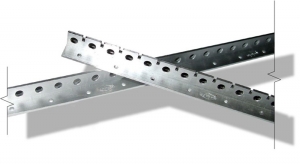

              Chain Plate / Mast Step

              The universal chain plate/mast step is an extruded anodized aluminum T-section. Versatile in its application, it can be cut and customized as necessary. The section is very lightweight but extremely strong. Sold as two pieces, one at a length of 10-1/2" piece without notches (for shrouds and stays) and the second at 5-1/4" with notches for use as a mast step. The modeler himself determines the length and shape of the section.

              Chain Plate

              Specifications

              • Lengths: 2 pieces 10-1/2" or 262mm and 5-1/4" or 132mm

              • Width: 19/32" or 15mm
              • Height off Deck: 3/8" or 9mm
              • Vertical Hole Dia: 1/8" or 4mm
              • Vertical Hole Spacing: 3/8" O.C. or 10mm O.C.
              • Mounting Hole Dia: 1/16" or 2mm
              • Mounting Hole Spacing: 11/16" O.C. or 17mm O.C.
              • Weight: 34 grams in total
              Column

              Eye Bolt With Nut - M2.3 X 18mm

              The eye screw sits on its lightly curved special deck plate as if made from a single casting! The eye fits all Pekabe hooks, double hooks, rigging screws, and shackles.

              Attention: Eye screws feature a seam boundary; the loading limit is 35.25 lbs. or 16kg.

              Eye Bolt

              Specifications

              • Overall Length: 1" or 25mm

              • Overall Dia: 1/4" or 6mm
              • Height Off the Deck: 1/4" or 6mm
              • Through Hole: 1/8" or 4mm
              • Shaft Length: 3/4” or 18mm
              • Threaded Length: 1/2" or 13mm
              • Weight: 1.65 grams
              Column

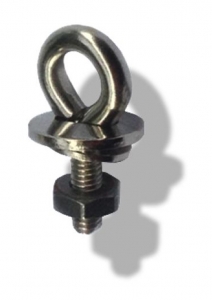

              Eye Bolt With Nut - M2.3 X 7mm

              The eye screw sits on its lightly curved special deck plate as if made from a single casting! The eye fits all Pekabe hooks, double hooks, rigging screws, and shackles.

              Attention: Eye screws feature a seam boundary; the loading limit is 35.25 lbs. or 16kg.

              Eye Bolt 7mm

              Specifications

              • Overall Length: 19/32" or 15mm

              • Overall Dia: 1/4" or 6mm
              • Height Off the Deck: 1/4" or 6mm
              • Through Hole: 1/8" or 4mm
              • Shaft Length: 1/4” or 6mm
              • Threaded Length: 1/4" or 6mm
              • Weight: 1.35 grams
              Column

              Fork Bolt

              The basic design corresponds to the 455 high strength eye bolt. The slot is exactly 2mm wide. Forked bolts can be particularly useful as a mount for braces. The advantage is that braces do not have to be laboriously screwed on, or unscrewed; they can instead be simply fixed or removed. The fork bolt is supplied with a washer and an M2.6 nut.

              Fork Bolt

              Specifications

              • Overall Length: 7/8" or 22mm

              • Overall Dia: 1/4" or 6mm
              • Drill Hole for Mounting: 3/32" or 3mm
              • Height Off the Deck: 1/4" or 6mm
              • Threaded Length: 1/2" or 12mm
              • Weight: 1.6 grams
              Column

              Pad Eye Set

              The eye plate is manufactured from solid brass, using the tried and tested conical and rounded shape (as with the 455, high strength eye bolt) to prevent sheet lines from snagging. The 3.5mm bore allows the use of the swivel shackle and Pekabe turnbuckles #482, #488, and #451 tension rails as well as the #404 and #448 double hooks. The eye plate is supplied with 2 countersink screws and nuts. A special spacer is also supplied, which may be used for high load, diagonal pull attachments.

              Pad Eye Set

              Specifications

              • Overall Dia: 7/16" or 11mm
              • Height Off the Deck: 5/16" or 8mm
              • Mounting Bolt Length: 3/4" or 18mm
              • Drill Holes for Mounting: 1/16" or 2mm
              • Weight: 3.4 grams
                    Column

                    Link Plates

                    Punched Strip

                    The punched strip offers great versatility and stability. It may be cut, bent, and shaped to form various rigging connections.

                    Punched Strip

                    Specifications

                    • Length: 1- 3/8" or 34mm

                    • Width: 3/16" or 5mm
                    • Weight: 1.3 grams
